Description:

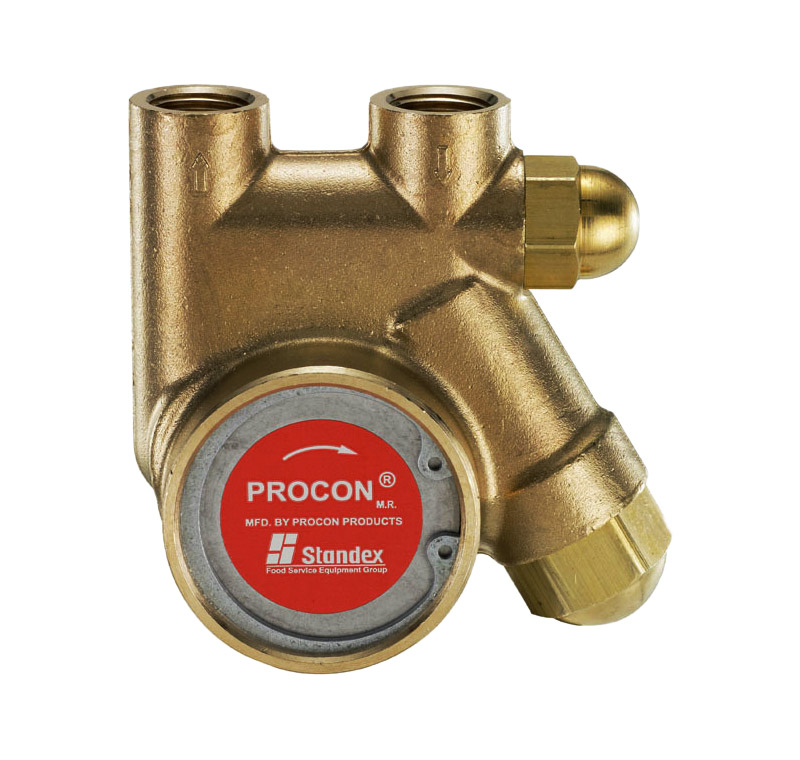

New replacement carbonator pump. Will fit most carbonators. Don't replace the whole carbonator when you only need a water pump!

PROCON's Series 1 pumps have the protection of an integral inlet strainer. The standard strainer is a 100 mesh wire screen. It traps particles that can cause serious damage to the pump. The strainer is equipped with a removable cap to allow periodic cleaning, every 4 months under normal conditions (more frequently with hard or turbid water).

Specifications

• Body Material: Brass
• Capacity: 15 to 125 GPH
• Nominal Speed: 1725 RPM
• Typical Horsepower Required: .25 to .50 HP
• Maximum Discharge Pressure: 250 PSI
• Rotation (viewed from nameplate): Clockwise
• Dry Weight: Approximately 2.5 lbs.
• Dimensions (inches): 3.56 x 3.49 x 3.86
• Self Priming (water): 6 ft. Maximum Lift
• Port Size: 3/8 NPT Inlet and Outlet
